Heavy-Duty Gantry Intelligent Polishing Machine Automatic Feed & Polishing Cycle

1
MOQ
To Be Negotiable
가격
Heavy-Duty Gantry Intelligent Polishing Machine Automatic Feed & Polishing Cycle
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
구조: 다리 구조
제어: CNC
재료: 대리석, 화강암 및 천연 석재 표면
메인 모터: 15kW
총 전력: 19kw
개략 차원: 5300*5000*3000MM
물 소비량: 2m³/h
그라인딩 헤드 수: 8개
강조하다:

Intelligent Polishing Machine

,

Heavy-Duty Polishing Machine

,

Automatic Feed Polishing Machine
기본 정보
원래 장소: Jinjiang, 후지안, 중국
브랜드 이름: Xianda Machinery
인증: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
모델 번호: ZDPM-3522/3545
결제 및 배송 조건
포장 세부 사항: 해상 운송에 적합한 플라스틱 패키지
배달 시간: 1개월
지불 조건: L/C, T/T, D/P, Western Union, PayPal, Money Gram, 기타
공급 능력: 1000 세트/년
제품 설명

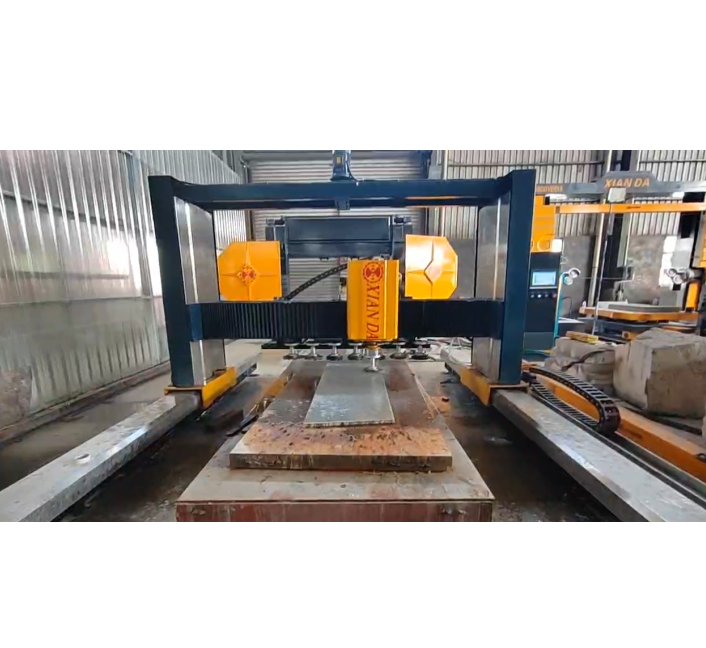

Heavy-Duty Gantry Intelligent Polishing Machine
Automatic Feed & Polishing Cycle
Transform your industrial surface finishing with the Microcomputer-Controlled Gantry Polishing Machine. This advanced system eliminates inconsistent results, slow workflows, and rising labor costs by delivering precision, efficiency, and ease of use for metal components, automotive parts, and hardware processing.
Technical Specifications
Parameter Unit LMPM-2532
Number of Station pcs 8
Number of spindle heads pcs 1
Grinding Head replacement method / Automatic
Lifting stroke mm 1200
Left and right travel mm 2500
Front and back travel mm 3500
Main motor power kw 11
Total power kw 17
Side-beam travel structure / linear guide structure
Front/Rear drive mode / Dual motor Y-axis drive
Overall dimensions mm 5300*5000*3000
Total water consumption m³/h 2
Core Design: Stability & Precision Engineering
Built to eliminate common polishing flaws with advanced engineering features:
  • Microcomputer control + gantry mobile structure: Coordinates movements with pinpoint accuracy to prevent uneven finishes
  • Four-guide-rod crossbeam lifting: Ensures ultra-smooth, wobble-free movement for consistent polishing results
  • Pneumatic machine head + high-precision components: Delivers high efficiency, tight precision, and rock-solid stability for high-volume production
Flexible Polishing System
Adapt to diverse workflows without multiple specialized tools:
  • Station-specific controls with independent on/off toggling and adjustable speed/pressure
  • User-friendly program settings for different workpiece sizes, materials, and finishes
  • Suitable for both delicate small hardware and heavy automotive components
Automatic Tool Change System
Address labor challenges with time-saving automation:
  • Automatic tool change function eliminates slow, error-prone manual swaps
  • Enables one operator to manage multiple machines simultaneously
  • Frees teams for higher-value quality control and process optimization tasks
Ideal Applications
Supports production lines across multiple industrial sectors:
  • Automotive: Engine parts, chassis components, wheel rims
  • Metal Fabrication: Steel plates, welded structures, profiles
  • Hardware/Sanitary Ware: Small fixtures, faucets, and larger components
Ready to Upgrade Your Polishing Process?
This Industrial Precision Polishing Equipment delivers faster production, lower labor costs, and consistent quality. Elevate your industrial finishing capabilities with our High-Stability Industrial Finishing Machine – delivering precision performance one polish at a time.
Contact Us
Email: group@chinaxianda.com
Phone: +8613055673306
Contact us for a free consultation, quote, or demonstration
