Discovery 4 CNC Diamond Wire Saw Machine For Marble Granite

1
MOQ
To Be Negotiable
가격
Discovery 4 CNC Diamond Wire Saw Machine For Marble Granite
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
와이어 속도: 0-40m/s
휠 직경: 1600MM
총중량: 6000kg
물 소비량: 6m3/H
인증: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
핵심 단어: 석재 기계
보증 시간: 1년
제어: CNC 절단 기계
최대 처리 크기: 2000*3000*1500mm
최대 처리 크기: 3000*2500*1500mm
와이어 직경: 0.6-1.8mm
오토메이션: 오토매틱
와이어 길이: 10m
제어 유형: CNC
절단 길이: 20-60m
지름: 8.5mm ~ 11.5mm
절단 정밀도: 높은
축: 15kW
트롤리 크기: 1400*2500mm
조정 거리: 450mm
총 모터: 11kw
제어 시스템: PLC 시스템
정격 출력: 2.2kw
강조하다:

CNC diamond wire saw machine

,

marble cutting wire saw

,

granite wire saw machine
기본 정보
원래 장소: Jinjiang, 후지안, 중국
브랜드 이름: Xianda Machinery
인증: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
모델 번호: 디스커버리 4-2000/2500/3000
결제 및 배송 조건
포장 세부 사항: 해상 운송에 적합한 플라스틱 패키지
배달 시간: 1개월
지불 조건: L/C, T/T, D/P, Western Union, PayPal, Money Gram, 기타
공급 능력: 1000 세트/년
제품 설명
Discovery 4 CNC Diamond Wire Saw Machine
Precision cutting machine designed for processing large stone blocks into various special shapes. This cost-effective solution delivers high-precision cuts in granite, marble, and other stone materials with exceptional efficiency and durability.
Technical Specifications
Model Max Processing Size Wheel Diameter Trolley Size Table Bearing Weight Wire Speed Main Motor Outline Dimension Gross Weight Water Consumption
Discovery 4-2000 2000*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 6800*6300*3950mm 6000kg 4m³/h
Discovery 4-2500 2500*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 7800*6300*3950mm 6250kg 4m³/h
Discovery 4-3000 3000*3000*1500mm 1600mm 1400*2500mm 20T 0-40m/s 11kw 8800*6300*3950mm 6500kg 4m³/h
Product Images

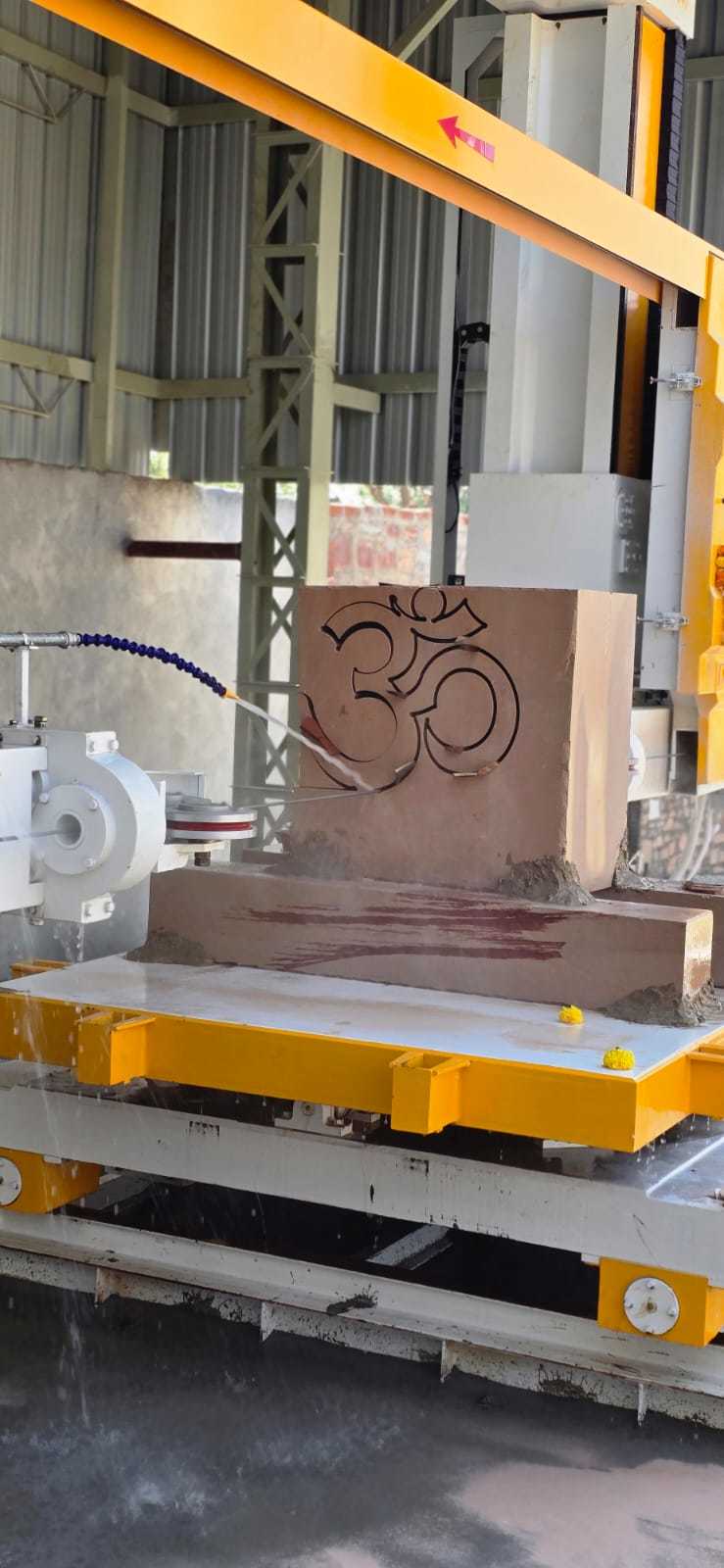

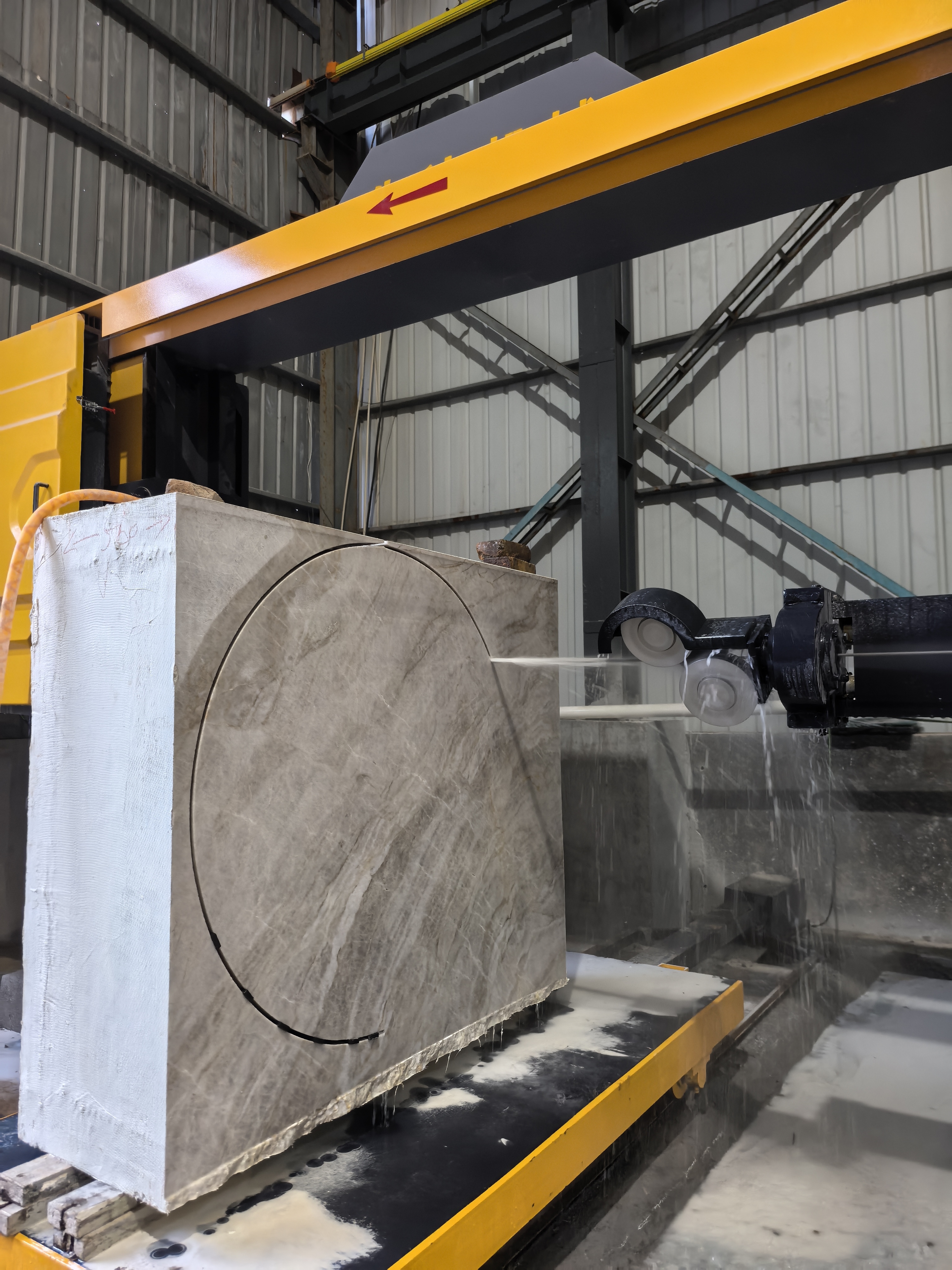

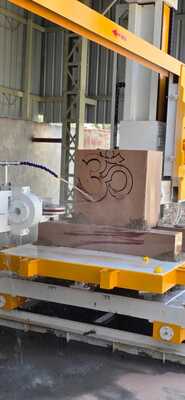

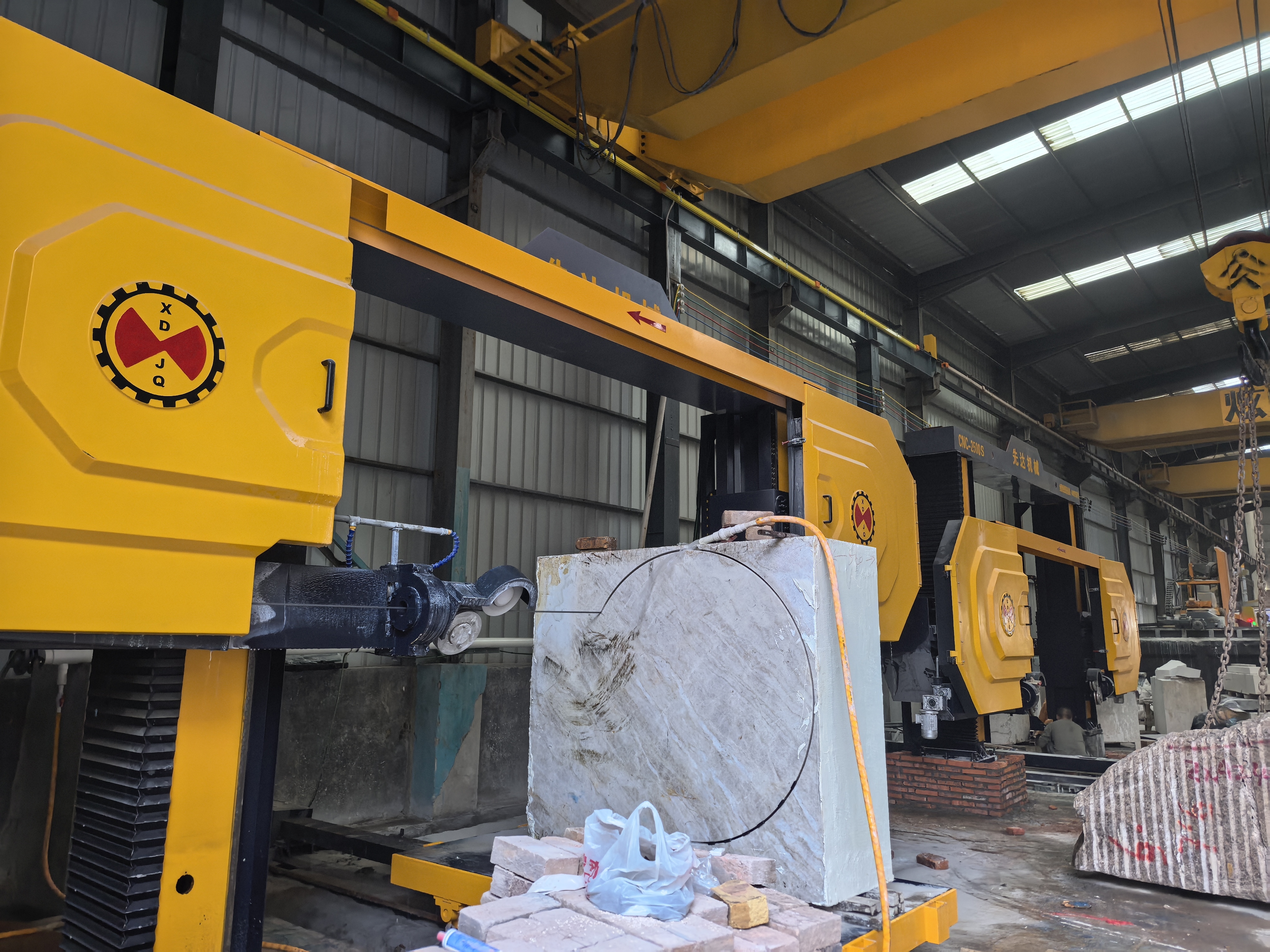

Discovery 4 CNC Diamond Wire Saw Machine For Marble Granite 0 Discovery 4 CNC Diamond Wire Saw Machine For Marble Granite 1 Discovery 4 CNC Diamond Wire Saw Machine For Marble Granite 2
Key Features
  • CNC control system for precise automated operation
  • Maximum processing capacity up to 3000*3000*1500mm
  • Durable 1600mm wheel diameter for stable cutting
  • 20-ton table bearing capacity for heavy stone blocks
  • Variable wire speed up to 40m/s for optimal cutting performance
  • Low water consumption at 4m³/h for efficient operation
  • Designed for cutting intricate shapes including round and curved stones
Applications
This diamond wire saw machine is ideal for stone cutting applications including block squaring, slab cutting, and creating special shapes. It effectively processes marble, granite, artificial stone, sandstone, quartz, and other stone materials. Suitable for both large-scale industrial operations and specialized stone fabrication projects.
Customization & Ordering Details
  • Brand Name: XIANDA MACHINERY
  • Model Numbers: Discovery 4-2000, 4-2500, 4-3000
  • Origin: Jinjiang, Fujian, China
  • Certifications: API, CCC, SONCAP, GOST, ISO, CE, SGS, IAF
  • Minimum Order: 1 SET
  • Packaging: Plastic packaging suitable for sea transportation
  • Delivery Time: 1 month
  • Supply Capacity: 1000 Sets/Year
  • Payment Options: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Technical Support & Services
Our dedicated technical support team provides comprehensive services including maintenance, repair, troubleshooting, and installation. We offer training and expert advice on machine operation and maintenance to ensure optimal performance and longevity.
Packaging & Shipping
Each diamond wire saw machine is securely packaged in protective wooden crates designed for safe sea transportation. All shipments are tracked and monitored throughout the delivery process to ensure timely and secure arrival.
Frequently Asked Questions
  • What is the brand name of the diamond wire saw machine? The brand name is XIANDA MACHINERY.
  • What model numbers are available? Available models include Discovery 4-2000, 4-2500, and 4-3000.
  • Where is the machine manufactured? The machine is manufactured in Jinjiang, Fujian, China.
  • What certifications does the machine have? Certifications include API, CCC, SONCAP, GOST, ISO, CE, SGS, and IAF.
  • What is the minimum order quantity? The minimum order quantity is 1 SET.
