홈 /제품 소개/다리 톱 절단기/4-Axis Bridge Cutting Machine with 85° Table Tilting 360° Head Rotation and Bus Absolute Servo for High-Precision CNC Cutting

4-Axis Bridge Cutting Machine with 85° Table Tilting 360° Head Rotation and Bus Absolute Servo for High-Precision CNC Cutting

1세트
MOQ
To Be Negotiable
가격
4-Axis Bridge Cutting Machine with 85° Table Tilting 360° Head Rotation and Bus Absolute Servo for High-Precision CNC Cutting
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
모델: 450 / 450L / 450-MC 확장
HS코드: 84641090
최대 날개 지름: 450mm
메인 모터: 15kW
작업대의 치수: 3200*2000mm
작업대 회전 정도: 0/85°
최대 절단 크기: 3400mm×2000mm×100mm
개요 차원: 5000*3100*2700mm
강조하다:

85° Table Tilting Bridge Cutting Machine

,

360° Head Rotation CNC Cutting Centre

,

Bus Absolute Servo 4-Axis Bridge Saw
기본 정보
원래 장소: Jinjiang, 후지안, 중국
브랜드 이름: Xianda Machinery
인증: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
모델 번호: 450 / 450L / 450-MC 확장
결제 및 배송 조건
포장 세부 사항: 와이어 로프 매질, 해상/항공/육상/철도 운송에 적합합니다.
배달 시간: 1 개월
지불 조건: L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram
공급 능력: 1000 세트/년
제품 설명
Expand 450 / 450L / 450-MC 4-Axis Bridge Cutting Machine – Advanced Edition
4-Axis Bridge Cutting Machine - Advanced Edition
Bus absolute-value servo, 0-360° head rotation, 85° table tilting - cut, chamfer, profile and mill in one cycle
Machine Overview
The Expand 450 Series is a 4-axis bridge-type CNC cutting centre built for high-precision, multi-angle processing of granite, marble and engineered stone.
Bus absolute-value servo, 0-360° cutting-head rotation, 85° table tilting and oil-immersed track let you cut, chamfer, profile and mill complex shapes in a single program - mirror-quality edges.
Why Expand 450 Advanced?
Feature Benefit
4-axis linkage (X-Y-Z + C) 360° head rotation → continuous arc, column, 3-D relief
85° table tilting Convenient loading
Bus absolute servo Power-off memory, zero backlash
Oil-immersed track Sealed against dust, longer rail life
Ø 350-450 mm blade Cuts 100 mm deep in one pass, 20-40 m/min feed

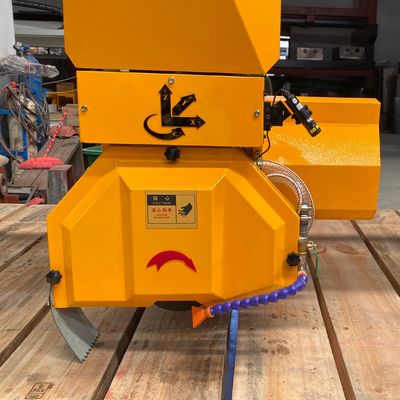

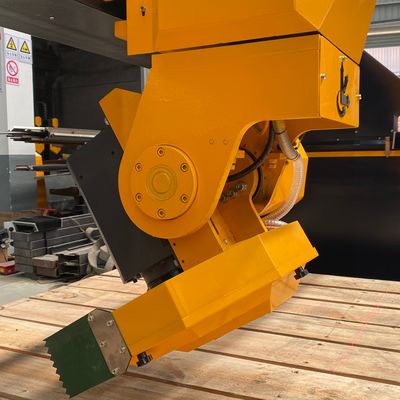

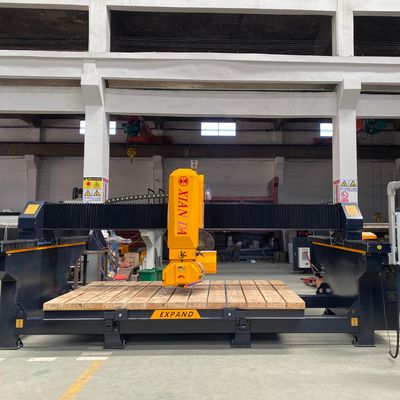

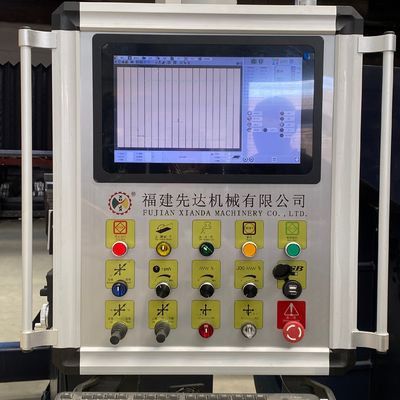

4-Axis Bridge Cutting Machine with 85° Table Tilting 360° Head Rotation and Bus Absolute Servo for High-Precision CNC Cutting 0 4-Axis Bridge Cutting Machine with 85° Table Tilting 360° Head Rotation and Bus Absolute Servo for High-Precision CNC Cutting 1 4-Axis Bridge Cutting Machine with 85° Table Tilting 360° Head Rotation and Bus Absolute Servo for High-Precision CNC Cutting 2 4-Axis Bridge Cutting Machine with 85° Table Tilting 360° Head Rotation and Bus Absolute Servo for High-Precision CNC Cutting 3
Model Selector
Model Blade Ø Table Size Max Block Tilt Head Rotate Foot-Print Weight
Expand 450 350-450 mm 3.2 × 2 m 3.2 × 2 × 0.1 m 45° 0-360° 5 × 3.1 × 2.7 m ~4 t
Expand 450L same same same 0-60° same same same
Expand 450-MC same same same 45° chamfer same same same
Same 4-axis system, oil-immersed track and permanent-magnet motor for all models.
Four-Axis Motion & Functions
  • X-axis - bridge longitudinal (3,200 mm)
  • Y-axis - cross beam transverse (2,000 mm)
  • Z-axis - head vertical (100 mm)
  • C-axis - 0-360° head rotation (continuous arc, column, 3-D relief)
Result: true 3-D sculpture, 360° column, under-cut or chamfer without blade change.
Application Gallery
  • 360° columns - Ø100-1,000 mm, full or barrel
  • Arc slabs - curved wall cladding, column façades
  • 45° chamfers - kerb edges, tombstone borders
  • 3-D reliefs - letters, numerals, Chinese characters
  • Under-cuts - sink cut-outs, shadow grooves
Materials: granite, marble, quartzite, basalt, engineered stone.
Workflow (1 Operator)
  1. Load slab onto tilting table (vacuum or mechanical clamp)
  2. Import CAD file (.dxf, .stp) or use on-screen wizard
  3. Select blade speed, tilt, rotation - click START
  4. Machine auto-cuts - head rotates & table tilts as programmed
  5. Unload finished piece - ready for polishing or direct install
Pricing, MOQ & Shipping
Item Detail
MOQ 1 (one) machine
Shipping Sea freight to nearest port included
Incoterms FOB, CIF, DDP optional
Lead time 25 days stock / 35 days custom
Payment T/T 30% deposit, 70% before shipment; L/C at sight accepted
