CNC Cutting and Milling Machine with Four Blade for Large-Scale High Precision and High Efficiency Stone Processing

1
MOQ
To Be Negotiable
가격
CNC Cutting and Milling Machine with Four Blade for Large-Scale High Precision and High Efficiency Stone Processing
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
강조하다:

High Precision CNC Stone Cutting Machine

,

High Efficiency CNC Stone Cutting Machine

,

CNC Cutting and Milling Machine
기본 정보
원래 장소: Jinjiang, 후지안, 중국
브랜드 이름: Xianda Machinery
인증: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
모델 번호: BLMM-1800MAX-2D-A/B
결제 및 배송 조건
포장 세부 사항: 와이어 로프 매질, 해상/항공/육상/철도 운송에 적합합니다.
배달 시간: 15 일
지불 조건: L/C, D/A, D/P, T/T, Western Union, MoneyGram
공급 능력: 1000 세트/년
제품 설명

CNC four-blade cutting and milling machine
1. Machine Overview

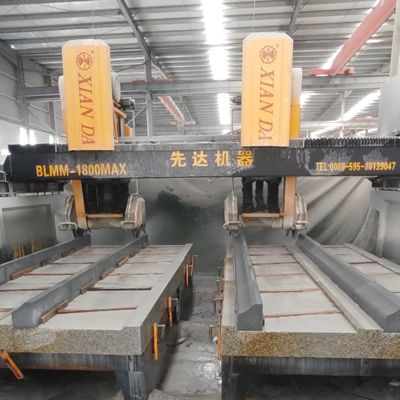

The BLMM-1800MAX-2D-A/B is a dual-beam, bridge-type, four-blade CNC cutting and milling center engineered for continuous, high-precision processing of large-scale, irregular-shaped stone.
Adopting a 3-axis CNC control, heavy bridge structure, and four active cutting spindles, it merges the accuracy of linear guides & ball screws with the power of a profiling machine, delivering high stroke, high efficiency, and high stability in a single unit.
Technical Parameters
Parameter Unit BLMM-1800 BLMM-1800MAX-A BLMM-1800MAX-B BLMM-1800MAX-2D-A BLMM-1800MAX-2D-B
Blade diameter mm 350-600 400-700 400-700 400-700 400-700
Max lifting travel of cutting frame mm 450 600 600 600 600
Worktable Size mm 1800*3500 1800*3500 1800*3500 1800*3500*2 1800*3500*2
Max processing length mm 3500 3500 3500 3500 3500
Main motor kw 15/18.5 (Optional) 18.5/22 (Optional) 18.5/22 (Optional) 18.5*2/22*2 (optional) 18.5*2/22*2 (optional)
Gross motor kw 21/24.5 (Optional) 24/27.5 (Optional) 24/27.5 (Optional) 46/53 46.5/53.5
Outline dimension mm 5300*3950*2550 6500*4350*3600 6200*4100*3600 6500*6450*3600 6200*6200*3600
Water Consumption m³/h 6 6 6 12 12

CNC Cutting and Milling Machine with Four Blade for Large-Scale High Precision and High Efficiency Stone Processing 0

CNC Cutting and Milling Machine with Four Blade for Large-Scale High Precision and High Efficiency Stone Processing 1

CNC Cutting and Milling Machine with Four Blade for Large-Scale High Precision and High Efficiency Stone Processing 2

CNC Cutting and Milling Machine with Four Blade for Large-Scale High Precision and High Efficiency Stone Processing 3

CNC Cutting and Milling Machine with Four Blade for Large-Scale High Precision and High Efficiency Stone Processing 4

1. 3-Axis CNC Control System

  • Real-time interpolation of X, Y & Z axes
  • Programmable rough-cut → fine-cut → finish-mill cycles
  • CAD/CAM file import (DXF, G-code, NC)
  • Teach-in and parametric programming modes
  • Remote diagnostics and IoT ready

2. Dual-Beam Bridge Heavy Structure

  • Twin welded steel beams = 40 % higher rigidity vs single-beam designs
  • Vibration-dampening ribs for chip-free edges on hard stone
  • Thermal-stress relieved frame guarantees long-term accuracy

3. Four-Head Cutting Array

  • Two 18.5 kW (22 kW optional) electro-spindles mounted on one cross-beam
  • Independent Z-axis servo for each head
  • Simultaneous or sequential mode:
    – Simultaneous: 2 × throughput on repetitive kerbstones / balusters
    – Sequential: rough + semi-finish + finish + profile in one pass

4. Four-Guide-Column + Copper-Bush Lifting System

  • Zero-backlash lifting; oil-bath lubrication for 10 000 h life
  • 400 mm Z-stroke (500 mm on MAX-2D-B) handles deep profile cuts

Package, Delivery & Warranty

  • Package: Steel-frame + plywood crate, IP54 export standard
  • Delivery: 25–30 days (standard), 35 days (custom)
  • Warranty: 12 months on-parts
  • Installation: 3-day on-site commissioning + operator training
  • Support: 24/7 hotline, remote VPN service, global spare-parts hub
