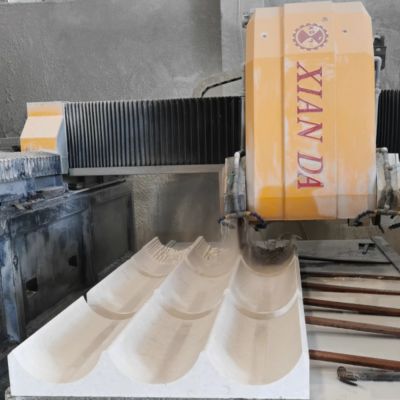

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting

1
MOQ
To Be Negotiable
가격
3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
작업: 오토매틱
기능: 표면 밀링/엣지 프로파일링/3D 윤곽 가공
전원: 전기 같은
주요 힘: 15/18.5(선택)
총 전력: 5월 21일(선택)
절단 재료: 화강암/대리석 등
키워드: 석재 밀링 머신/석재 프로파일링 기계/선형 절단 및 밀링 머신
교육 및 지원: 운영자 교육 및 지속적인 지원
강조하다:

3-axis Bridge Type Milling Machine

,

Blade Lifting Milling Machine

,

CNC Linear Cutting and Milling Machine
기본 정보
원래 장소: Jinjiang, 후지안, 중국
브랜드 이름: Xianda Machinery
인증: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
모델 번호: BLMM-1800
결제 및 배송 조건
포장 세부 사항: 와이어 로프 매질, 해상/항공/육상/철도 운송에 적합합니다.
배달 시간: 15 일
지불 조건: L/C, D/A, D/P, T/T, Western Union, MoneyGram
공급 능력: 1000 세트/년
제품 설명

Product Overview

The BLMM-1800 Bridge Type Linear Cutting and Milling Machine represents the perfect fusion of profiling machine power and linear guide ball screw accuracy. Featuring advanced 3-axis CNC system control and robust bridge-type construction, this versatile machine excels in processing linear components, square balusters, and special shapes of kerbstone with exceptional efficiency, accuracy, and stability.
Technical Parameters
Parameter Unit BLMM-1800 BLMM-1800MAX-A BLMM-1800MAX-B BLMM-1800MAX-2D-A BLMM-1800MAX-2D-B
Blade diameter mm 350-600 400-700 400-700 400-700 400-700
Max lifting travel of cutting frame mm 450 600 600 600 600
Worktable Size mm 1800*3500 1800*3500 1800*3500 1800*3500*2 1800*3500*2
Max processing length mm 3500 3500 3500 3500 3500
Main motor kw 15/18.5(Optional) 18.5/22(Optional) 18.5/22(Optional) 18.5*2/22*2(Optional) 18.5*2/22*2(Optional)
Gross motor kw 21/24.5(Optional) 24/27.5(Optional) 24/27.5(Optional) 46/53 46.5/53.5
Outline dimension mm 5300*3950*2550 6500*4350*3600 6200*4100*3600 6500*6450*3600 6200*6200*3600
Water Consumption m³/h 6 6 6 12 12

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 0

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 1

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 2

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 3

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 4

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 5

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 6

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 7

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 8

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 9

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 10

3-axis CNC Bridge Type Linear Cutting and Milling Machine with 3500 mm Processing Length and Multi-Function Precision Blade Lifting 11

Equipment Features

Advanced 3-Axis CNC System Control

  • 3-Axis Precision Control: Simultaneous control of X, Y, and Z axes for complex cutting operations
  • Multi-Function Processing: Integrated rough cutting, fine cutting, and finish milling capabilities
  • Intelligent Programming: User-friendly CNC interface with multiple operation modes
  • Automated Operation: Reduces manual intervention and increases productivity
  • Real-Time Monitoring: Continuous system status feedback and error detection

Robust Bridge Type Structure

  • Bridge-Type Construction: Optimal rigidity and stability for heavy-duty operations
  • Heavy-Duty Frame: Built to handle large stone blocks and continuous operation
  • Vibration Dampening: Minimizes vibration for superior cutting accuracy

Precision Blade Lifting System

  • Guide Pillar Design: Precision-ground guide pillars for smooth vertical movement
  • Copper Bush Technology: Wear-resistant copper bushings for extended component life
  • Stable Lifting Motion: Minimized vibration during vertical positioning
  • High Precision Positioning: Accurate blade height control for consistent cutting

Perfect Power-Accuracy Combination

  • Profiling Machine Power: Robust cutting power for hard stone materials
  • Linear Guide Accuracy: Precision ball screw rod for accurate positioning
  • Hybrid Technology: Combines the best of both power and precision worlds

Multi-Function Processing Capabilities

Rough Cutting Function   Fine Cutting Function Finish Milling

Ordering Process

  1. Technical Consultation: Application assessment and machine selection
  2. Detailed Quotation: Comprehensive pricing within 24 hours
  3. Factory Acceptance: Machine testing and approval
  4. Shipping Coordination: Logistics arrangement and tracking
  5. Installation Support: On-site setup and commissioning
  6. Training & Support: Operator training and ongoing assistance

Customer Success Stories

⭐⭐⭐⭐⭐ "Perfect for our baluster production" "The BLMM-1800 has transformed our square baluster manufacturing. The precision and speed are exceptional, and we can now handle complex custom orders with ease." - European Stone Fabrication Company
⭐⭐⭐⭐⭐ "Excellent kerbstone processing solution" "This machine handles our special shaped kerbstone requirements perfectly. The multi-function capabilities have expanded our product range significantly." - North American Road Construction Supplier
⭐⭐⭐⭐⭐ "Outstanding value for money" "We achieved ROI in just 15 months. The machine's reliability and the support team's expertise have made this a game-changing investment for our business." - Asian Architectural Stone Processor
