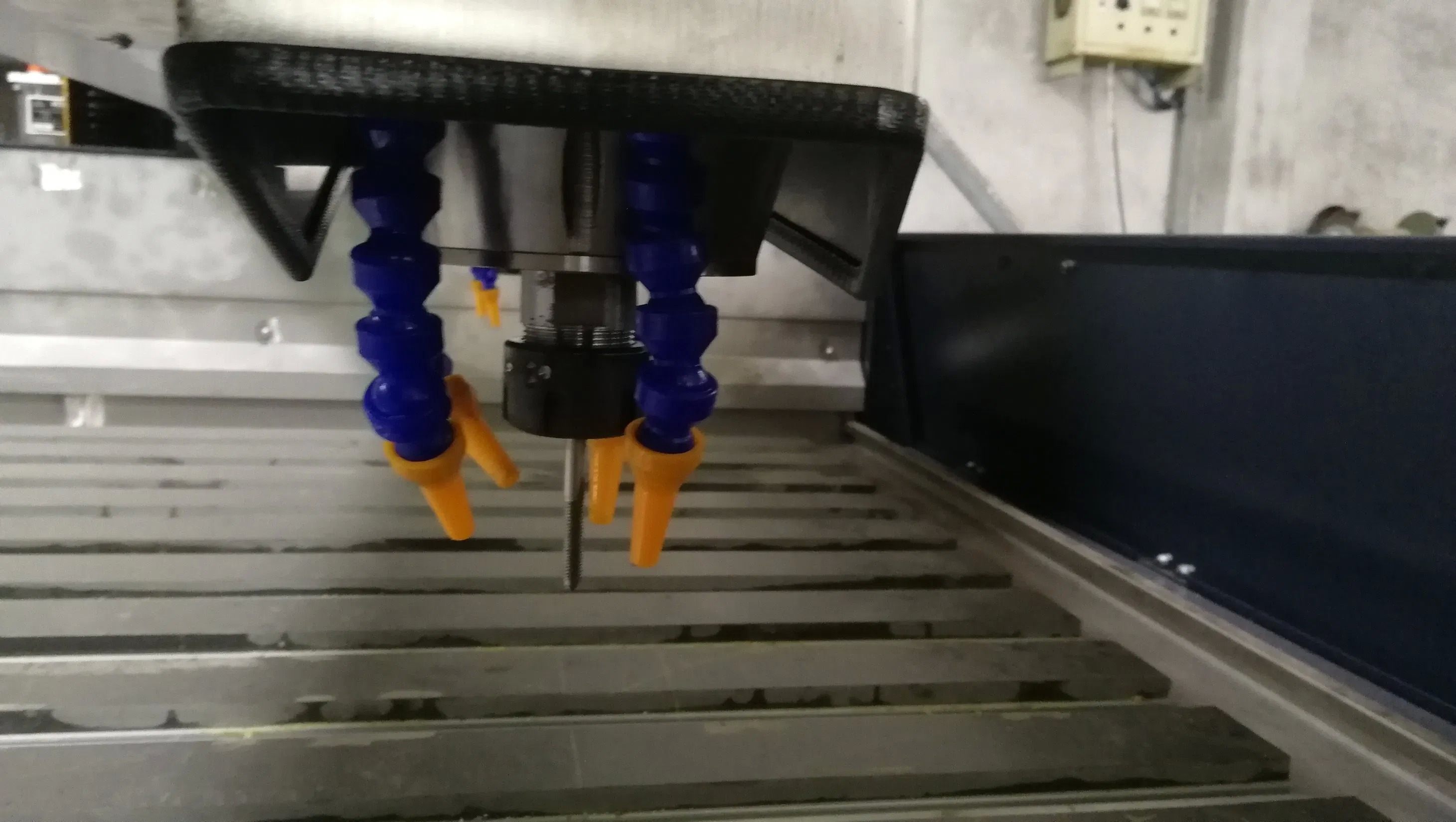

This CNC stone carving machine features numerical control system, three-axis linkage, double row four-row slider, constant power spindle motor, and two-way tool cooling system. It offers stable operation, high precision, and efficiency for processing marble, granite, bluestone, jade, agate, copper plate, and aluminum plate.

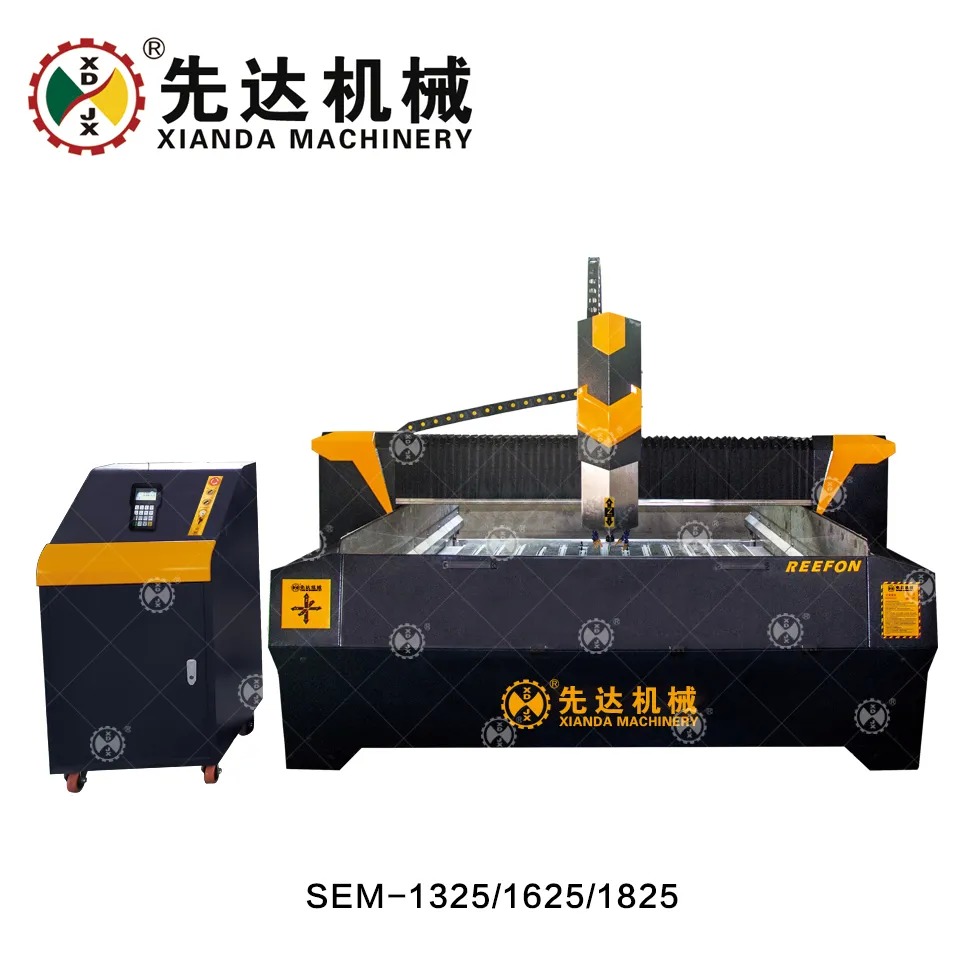

| Parameter | Unit | SEM-1325 | SEM-1625 | SEM-1825 |
|---|---|---|---|---|
| Dimension | mm | 1300×2500 | 1600×2500 | 1800×2500 |
| Feed height | mm | ≤350 | ≤350 | ≤350 |
| Air speed | m/min | 15 | 15 | 15 |
| Number of spindles | pcs | 1 | 1 | 1 |
| Spindles power | kw | 5.5 | 5.5 | 5.5 |
| Outline dimension | mm | 2360×3600×2200 | 2660×3600×2200 | 2860×3600×2200 |
| Water consumption | m³/h | 1 | 1 | 1 |

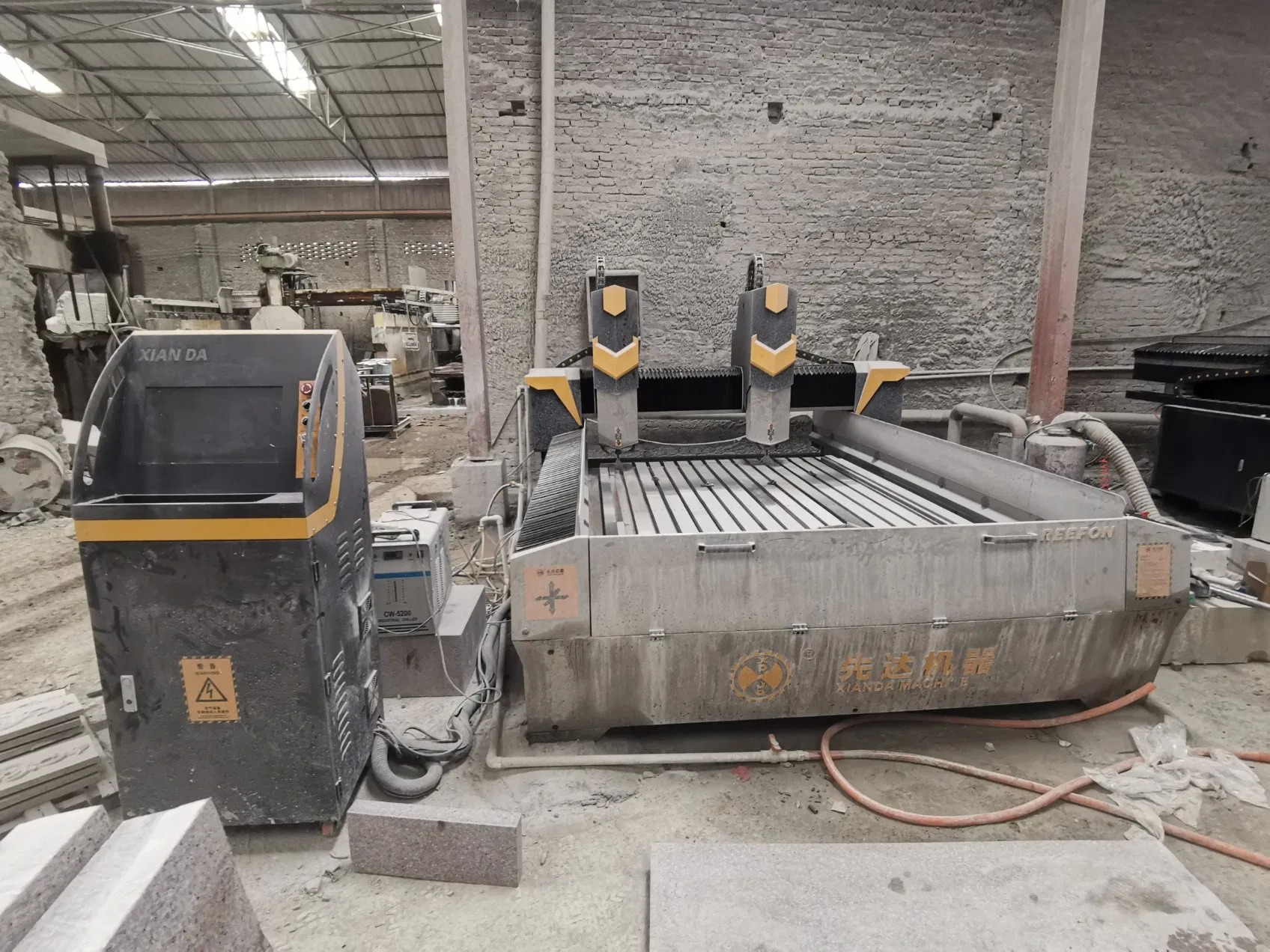

| Parameter | Unit | SEM-1625-2D | SEM-1825-2D | SEM-2030-2D |
|---|---|---|---|---|
| Dimension | mm | 1600×2500 | 1800×2500 | 2000×3000 |
| Feed height | mm | ≤350 | ≤350 | ≤350 |
| Air speed | m/min | 15 | 15 | 15 |
| Number of spindles | pcs | 2 | 2 | 2 |
| Spindles power | kw | 5.5 | 5.5 | 5.5 |
| Outline dimension | mm | 2660×3600×2200 | 2860×3600×2200 | 3060×4100×2200 |
| Water consumption | m³/h | 2 | 2 | 2 |
Fujian Xianda Machinery Co., Ltd. has been manufacturing stone processing machinery since 1985. As a top 5 stone cutting machine manufacturer with ISO & CE certification, we hold 70% of China's market share in special shape stone cutting machines.
