4 Axis Slab & Column Carving Machine Stone Bridge Edging Simple Marble Granite
Basic Information
Model No.: ACM-2515-1Q, ACM-3015-2Q
Type: CNC Cutting Machine
Usage: Granite, Marble
Application: Machinery & Hardware, Art & Craft, Construction, Mineral Industry, Stone Industry
Source Voltage: 220V
Automation: Automatic
Cutting Ability: High Speed
Control: CNC
Certification: CCC SONCAP GOST ISO CE
Spindle Type: 1 Tilting Head
Dimension of Worktable: 2500*1500mm
Feed Height: ≤650mm
Air Speed: 13m/Min
Number of Spindles: 1PC
Spindle Power: 7.5kw
Outline Dimension: 3700*2410*3500mm
Water Consumption: 1m³/H
Transport Package: Plastic Package, Suitable for Sea Transportation
Trademark: Xianda
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Production Capacity: 1000 sets/Year
Product Description

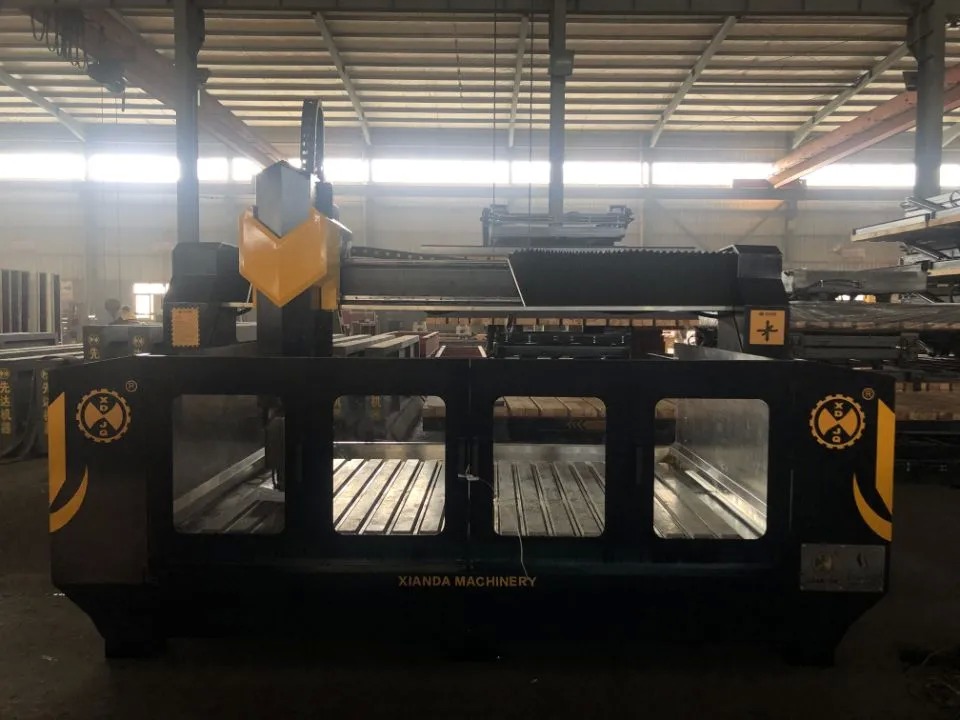

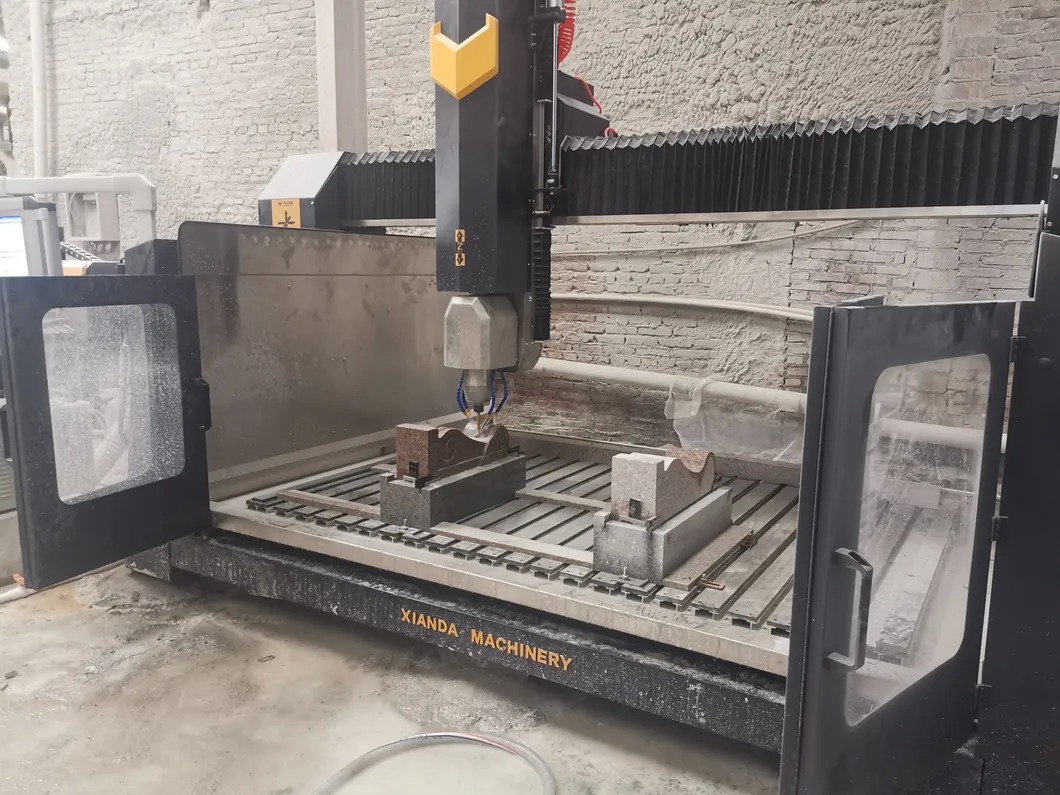

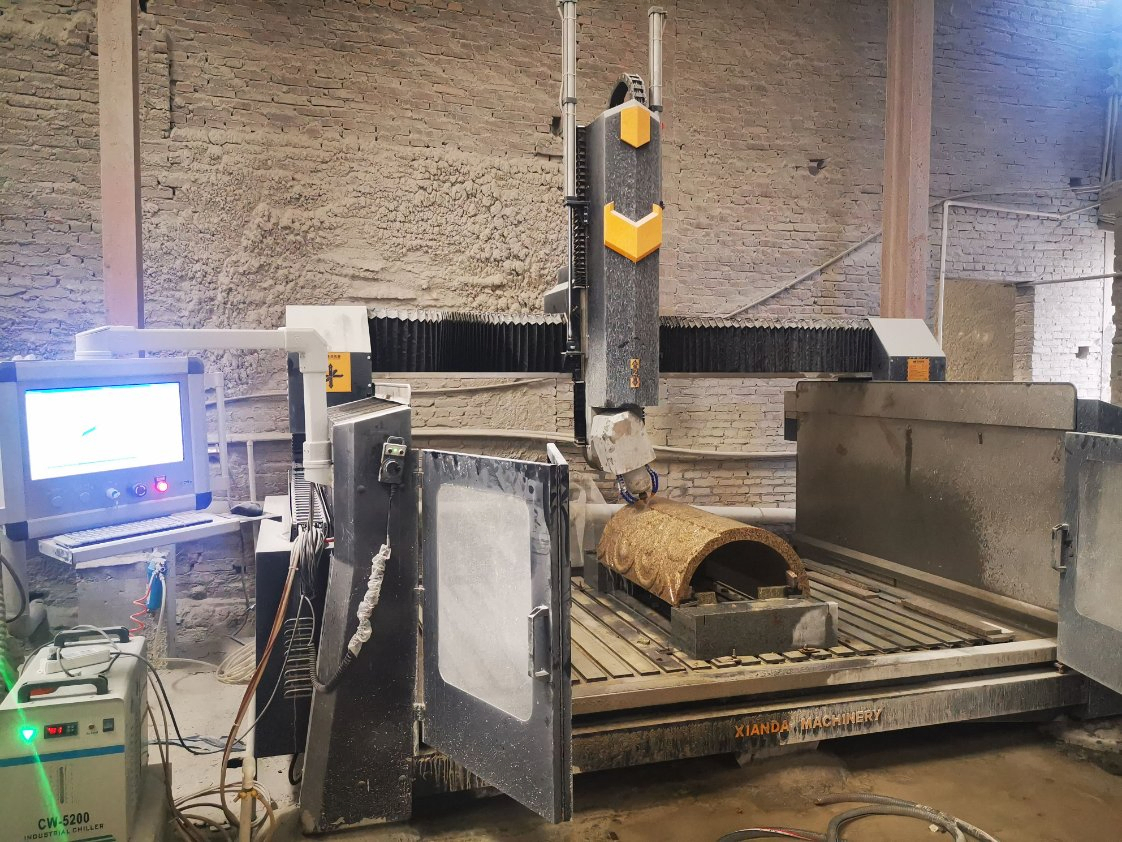

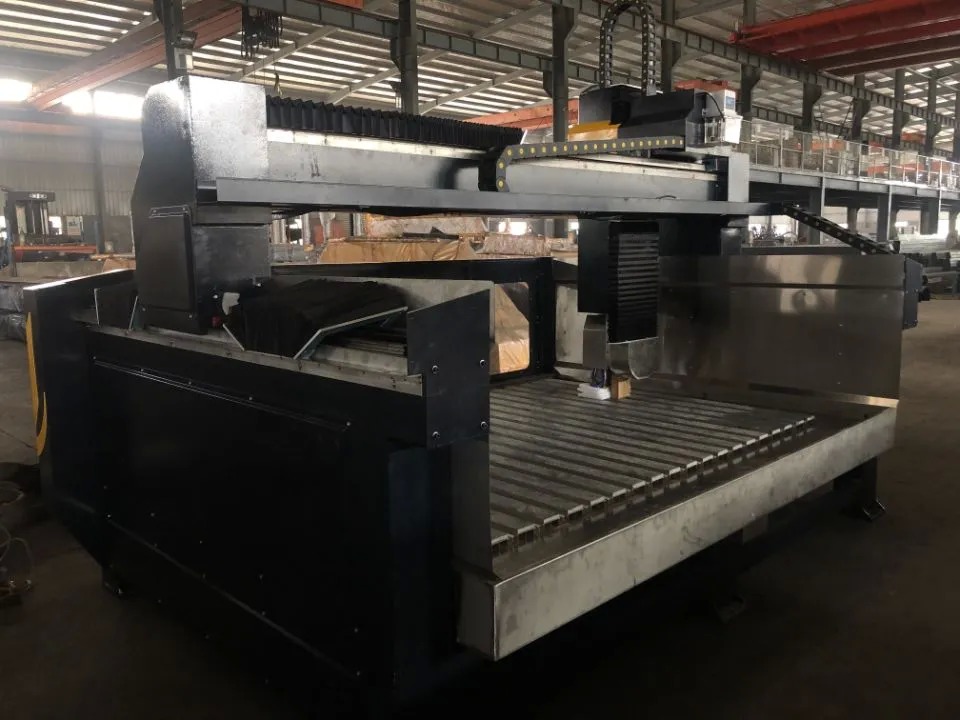

Fujian Xianda ACM-2515-1Q adopts numerical control system with four-axis linkage, double row four-row slider, constant power spindle motor, and two-way tool cooling system. This machine features stable running, high precision, and high efficiency, suitable for processing marble, granite, bluestone, jade, agate, copper plate, and aluminum plate.
Technical Parameters
| Parameter |
Unit |
ACM-2515-1Q |
ACM-3015-2Q |
| Spindle type |
/ |
1 Tilting head |
2 Tilting head |
| Dimension of worktable |
mm |
2500*1500 |
3000*1500 |
| Feed height |
mm |
≤650 |
≤650 |
| Air Speed |
m/min |
13 |
12 |
| Number of spindles |
pcs |
1 |
2 |
| Spindle Power |
kw |
7.5 |
7.5*2 |
| Outline dimension(L*W*H) |
mm |
3700*2410*3500 |
4200*2410*3500 |
| Water consumption |
M³/h |
1 |
2 |
Company Profile
Fujian Xianda Machinery Co.Ltd was established in 1985 and has been dedicated to developing and producing column making machines, wire saw stone cutting machines, block trimming machines, bridge saw cutting machines, and profiling stone cutting machines.
Quality Assurance
- 32 years' manufacturing experience
- Special shape stone cutting machine with over 70% market share in China
- Top 5 stone cutting machine manufacturer with ISO & CE certification
- Products exported to more than 20 countries
- Uses top brand components to ensure high quality
- Professional technical support available 24/7
Frequently Asked Questions
How to place an order?
1. Inquiry - Professional quotation
2. Confirm price, lead time, logo, payment terms
3. Xianda sales send Proforma Invoice with seal
4. Customer makes deposit payment
5. Production arranged after payment confirmation
What is the warranty period?
We provide one year parts warranty service.
What materials can this machine process?

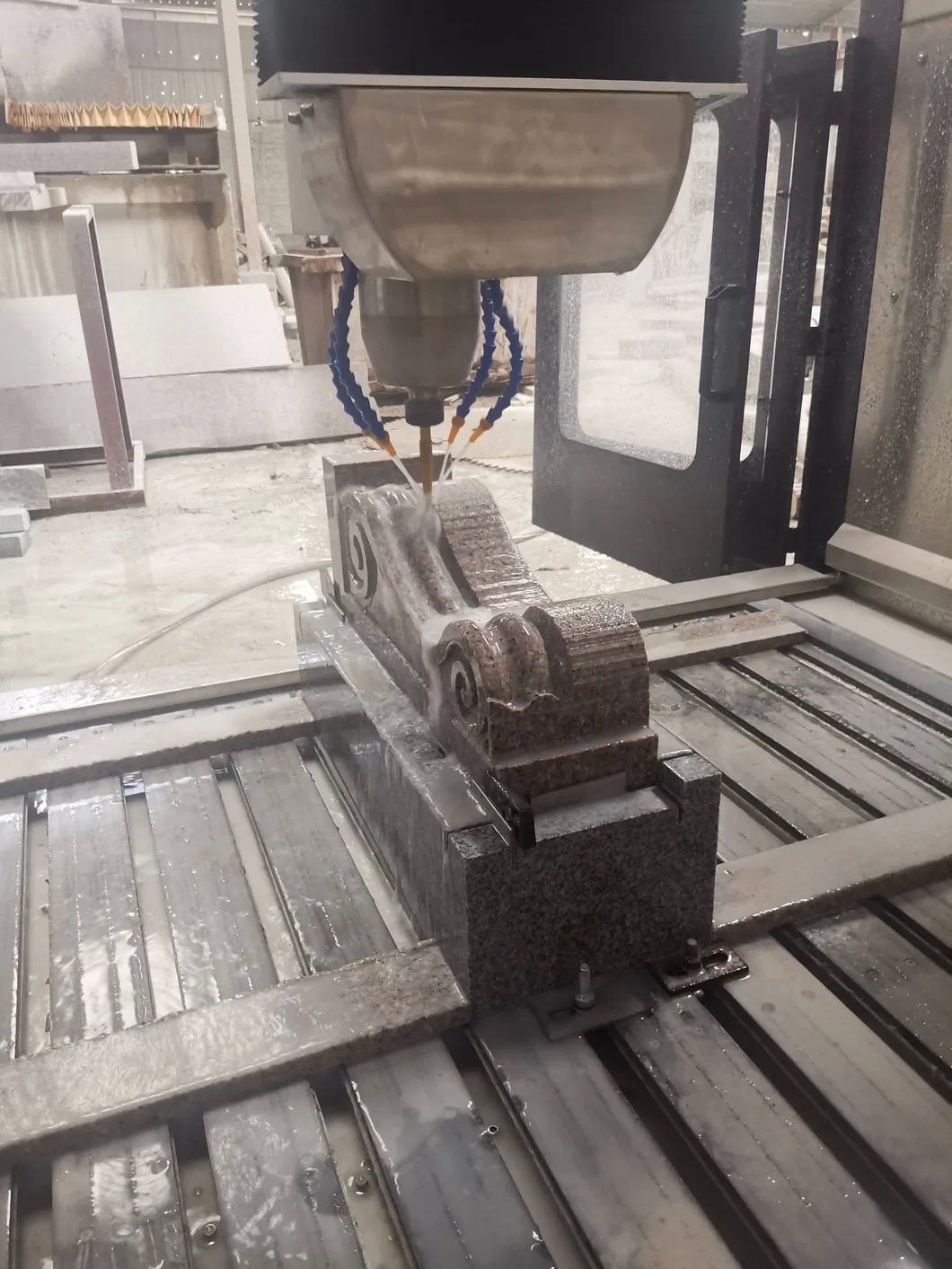

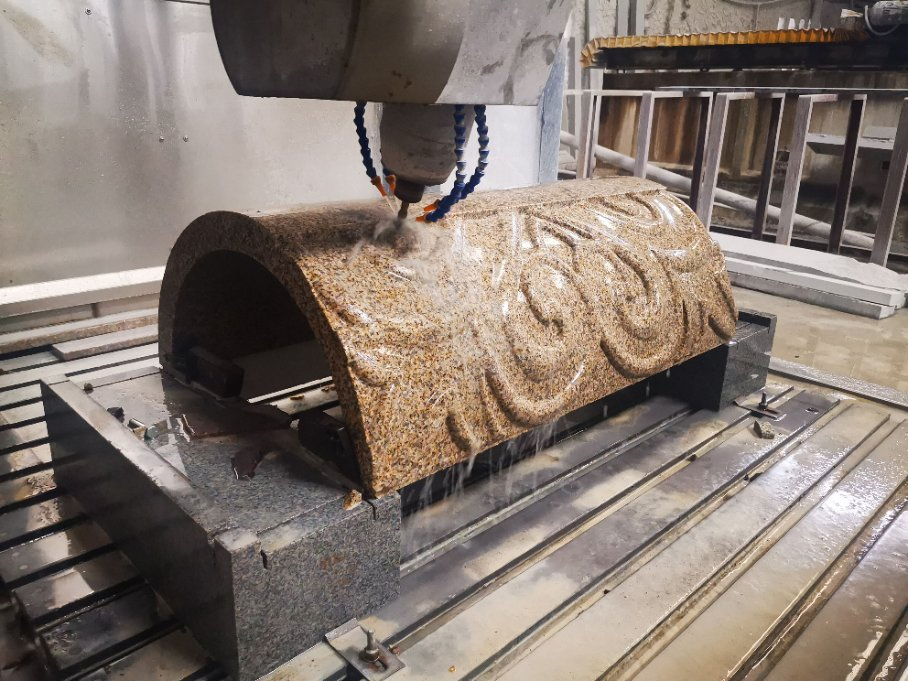

This machine is designed to cut lines on stone like columns, big arc shaped slabs, and special stone shapes in materials including marble, granite, bluestone, jade, and agate.
