Bridge Multiblade Block Cutter Granite Marble Block Cutting Machinery

1
MOQ
US $ 32000-38000
가격
Bridge Multiblade Block Cutter Granite Marble Block Cutting Machinery
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
강조하다:

Bridge multiblade granite block cutter

,

Marble block cutting machinery

,

Diamond wire saw machine with warranty
기본 정보
원래 장소: Jinjiang, 후지안, 중국
브랜드 이름: Xianda
인증: CE, ISO, GOST, SONCAP, CCC, API, SGS
모델 번호: BTC-2200
결제 및 배송 조건
배달 시간: 45 일
지불 조건: l/c, d/a, d/p, t/t
공급 능력: 1000Set/year
제품 설명

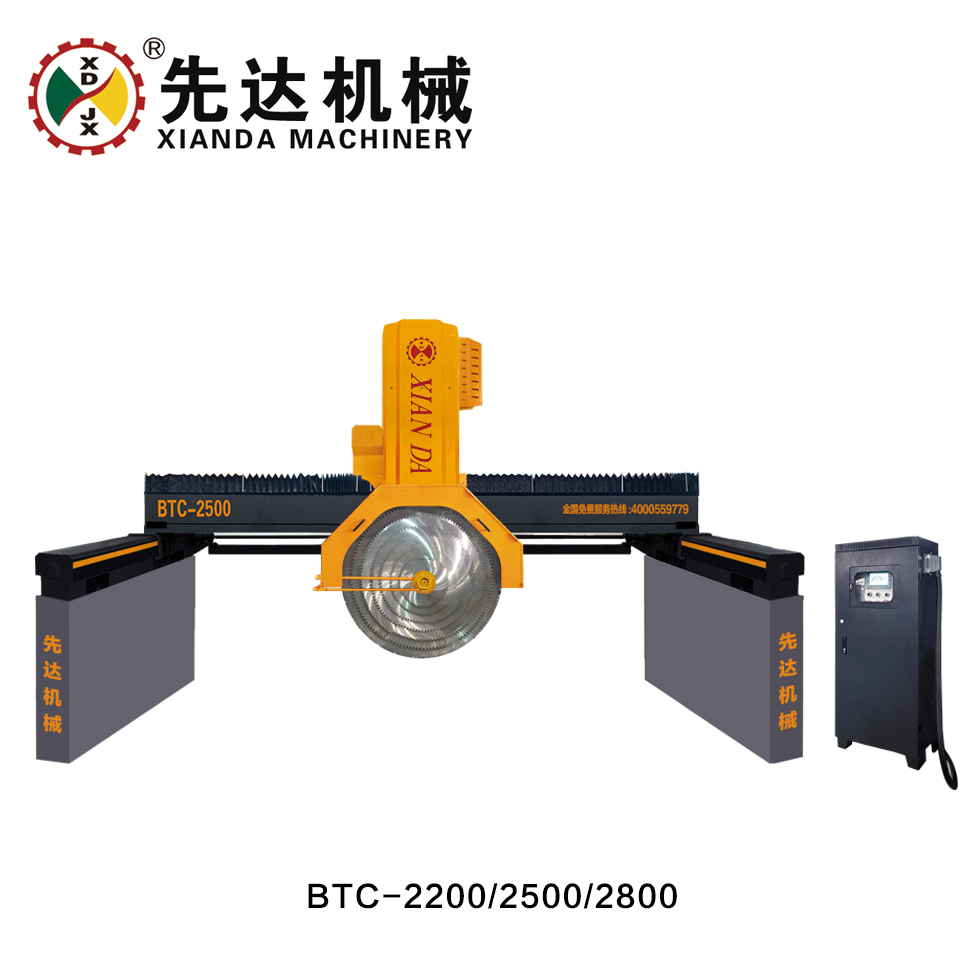

Bridge Multiblade Block Cutter for Granite & Marble
High-performance automatic block cutting machinery designed for precision cutting of granite and marble blocks in industrial applications.
Key Specifications
Model BTC-2200/2500/2800
Application Machinery & Hardware, Stone Industry
Source Voltage 380V
Automation Automatic with PLC Control
Certification ISO
Max Blade Diameter 2200mm/2500mm/2800mm
Max Processing Length 3000/3300/3600mm
Main Motor Power 45/55kw
Gross Weight 14000/14500/15000kg
Product Features
  • Inverter-controlled left-right feeding with adjustable speed
  • Hydraulic lifting system (screw lifting system optional)
  • High-precision screw nut driving for forward-backward slicing
  • Automatic slicing operation
  • Main spare parts made from imported high-quality materials
  • Ground placement design eliminates need for worktable
  • High cutting efficiency with excellent slicing precision
  • Produces plates with superior flatness after cutting
  • Specially designed for cutting granite and marble blocks with high wave
Technical Parameters
Parameter Unit BTC-2200 BTC-2500 BTC-2800
Max blade diameter mm φ2200 φ2500 φ2800
Max processing length mm 3600 3300 3000
Max processing width mm 2200 2200 2200
Max lifting stroke mm 1350 1350 1350
Main motor kw 45/55 45/55 55
Gross motor kw 56/66 56/66 66
Water consumption m³/h 15 15 15
Gross weight kg 14000 14500 15000
Certifications
Bridge Multiblade Block Cutter Granite Marble Block Cutting Machinery 0
Our Services
  • Machine testing video available for verification
  • 32 years of manufacturing experience in stone cutting machinery
  • Special shape stone cutting machines hold over 70% market share in China
  • Top 5 manufacturer with ISO & CE certification
  • Global distribution to more than 20 countries
  • Use of top brand components to ensure high quality
  • Competitive pricing and quantity discounts available
  • Production capacity exceeding 1000 sets per year
  • 24/7 online after-sales service
  • Professional installation guidance and operator training
