풍모 갤러리 제품 설명 따옴표를 요구하십시오

풍모

제품 사양

Voltage: 220V/380V

Cutting Depth: High Depth

Power: 2.2KW

Max Lifting Travel of Cutting Frame: 400mm

Material: Stone

Operation: Manual

Weight: 200KG

Cutting Speed: High Speed

Blade Diameter: 350-600mm

Trolley Size: 1700*3500mm

Main Motor: 15kw

Gross Power: 21.5kw

기본 정보

Place of Origin: Jinjiang, Fujian, China

브랜드 이름: Xianda Machinery

인증: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF

Model Number: BLMM-1800

결제 및 배송 조건

Packaging Details: Plastic Package, Suitable For Sea Transportation

Delivery Time: 1 Month

Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others

Supply Ability: 1000 Sets/Year

갤러리

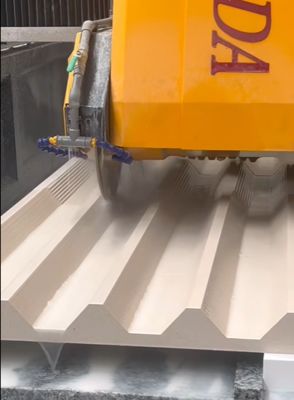

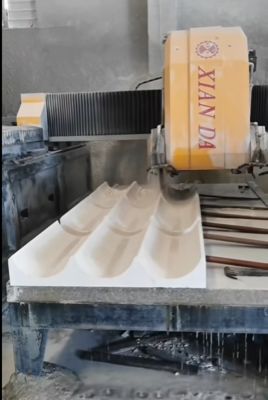

Bridge Type Linear Cutting & Milling Machine | CNC Precision Machining

제품 설명

Bridge Type Linear Cutting & Milling Machine | CNC Precision Machining

Name: Bridge Type Linear Cutting & Milling Machine | CNC Precision Machining
Brand: Fujian Xianda Machinery co.,ltd
SKU: BLMM-1800
Price: 11,016.00 USD
Availability: InStock

3-Axis CNC Precision: From Rough Cuts to Polished Finishes

What sets this machine apart is its advanced 3-axis CNC system, which seamlessly handles every stage of production — from rough cutting to fine cutting and finish milling. This all-in-one capability eliminates the need for multiple machines or manual transfers, streamlining your workflow and reducing production time significantly.

Technical Parameter

Parameter	Unit	BLMM-1800
Blade diameter	mm	350-600
Max lifting travel of cutting frame	mm	450
Trolley size	mm	1800*3500
Max processing length	mm	3500
Main motor	mm	15/18.5(The optional)
Gross power	kw	21/24.5(The optional)
Outline dimension	mm	530029502550
Water consumption	m³/h	6

Bridge-Type Structure: Stability That Powers Performance

At the core of this machine’s reliability is its robust bridge-type structure. Engineered for maximum rigidity, the bridge design minimizes vibrations even during high-speed cutting, ensuring that every operation — from heavy-duty roughing to delicate finishing — is executed with stability. This stability is critical when working with hard materials like stone or concrete, where even the smallest wobble can ruin a piece.

mart Design: Blade Lifting with Guide Pillar and Copper Bush

Durability and smooth operation are built into the machine’s DNA, thanks to its thoughtful design features. The blade lifting mechanism, supported by guide pillars and copper bushes, ensures steady, friction-free movement. Copper bushes reduce wear and tear, extending the life of the components and minimizing maintenance needs. This means less downtime for repairs and more time for production — a direct boost to your bottom line.

Ideal for Linear, Square Balusters, and Special-Shaped Kerbstones

While this machine excels in various applications, it truly shines when processing:

Linear kerbstones: Perfectly straight edges and uniform dimensions for seamless installation in roads, parks, or plazas.
Square balusters: Crisp angles and smooth surfaces that add elegance to railings, staircases, and architectural features.
Special-shaped kerbstones: Custom designs, curves, and unique profiles that make your projects stand out in urban landscapes or luxury properties.

No matter the shape or complexity, this machine transforms raw materials into finished products with ease, making it an indispensable tool for stone fabricators, construction suppliers, and architectural workshops.

Why Choose This Machine?

In a market flooded with generic equipment, the 3-axis CNC bridge-type cutting and milling machine stands out for three key reasons:

High Efficiency: Streamlined 3-axis processing reduces production time by handling all stages in one setup.
High Accuracy: Linear guides, ball screws, and a stable bridge structure ensure precise, consistent results.
High Stability: Durable components like copper bushes and a rigid frame guarantee reliable performance, even under heavy use.
